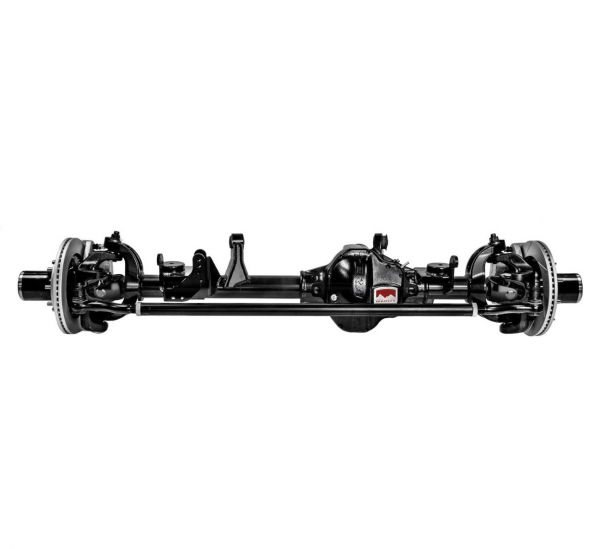

Teraflex Front Wide Tera60 Full-Float Axle Assembly with ARB Locker, Locking Hubs & 8x6.5 Bolt Pattern for 97-06 Jeep Wrangler TJ & Unlimited w/ 0-6" LIft 3806538-

SKU
TER-3806538-
We Price Match
The TeraFlex Front Wide Tera60 Full-Float Axle Housing Assembly with ARB Locker, Locking Hubs & 8x6.5 Bolt Pattern for TJ Wrangler & Unlimited with 0-6" Lift is a direct bolt-on upgrade for TJ Wrangler owners looking to replace weakened, strained, or damaged front axles in TJ Wrangler and Unlimited vehicles.
As low as $14,761.56 Regular Price $18,451.95
Teraflex 3806538-

The TeraFlex Front Wide Tera60 Full-Float Axle Housing Assembly with ARB Locker, Locking Hubs & 8x6.5 Bolt Pattern for TJ Wrangler & Unlimited with 0-6" Lift is a direct bolt-on upgrade for TJ Wrangler owners looking to replace weakened, strained, or damaged front axles in TJ Wrangler and Unlimited vehicles. By integrating the driver side upper control arm mount into the housing assembly, the Tera60 Assembly has gained an additional 2” of maximum up travel and suspension compression. The Tera60 is equipped with high-quality extreme-duty components such as heavy-duty axle tubes, bearing caps, forged inner knuckles, high-flow oil passages, bracketry, seamless lines, and increased cover mounting area. The Full-float axle design with sealed locking hub assemblies and 8x6.5” wheel bolt pattern is constructed to conquer the utmost Off-Road conditions. Pre-installed inner seals and upper control arm bushings make the upgrade perfectly consistent. This Teraflex Tera60 Axle Assembly is compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.



Fitment:

97-06 Jeep Wrangler TJ
04-06 Jeep Wrangler TLJ



Features:

Axle Diameter - 3.25" OD
Axle Tube Thickness - .375" wall
Bolt Pattern - 8x6.5"
Axle Width - 67" (extra wide)
Lift Height - 0 to 6 inches
Locker - ARB Super 60
Spicer bearings & install kits
Pinion Yoke - 1350 series
Axle Spline - 35 spline inner & outer
Brakes - Big Rotor Kit w/ 13.3” rotors
Locking Hub Assembly (sealed)
Shipping Dims - 78" x 25" x 24"
Shipping Weight - 667 lbs
Made in the USA



Parts Included:

Axle Assembly



Notes:

*** This axle assembly requires a new driveshaft or driveshaft modification.

*** The bolt pattern is 8x6.5 which is different from the factory original 5x4.5 bolt pattern. New wheels will be required.
