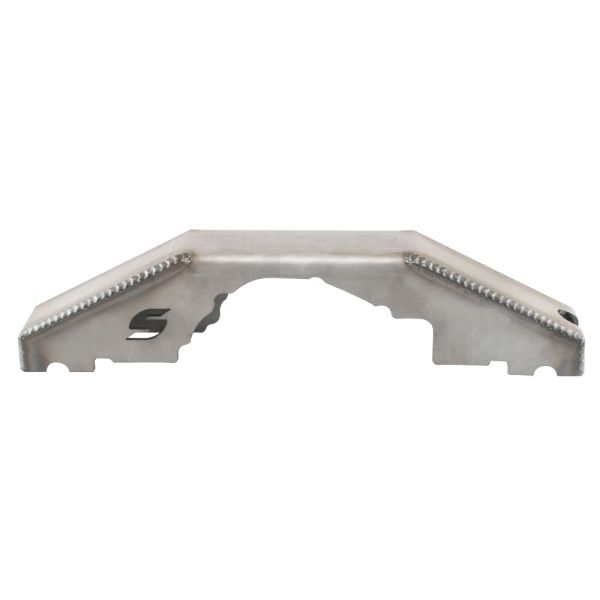

Synergy Rear Weld-On Axle Truss for 07-18 Wrangler JK/JKU 8072-06



Fitment:

2007-2017 Jeep Wrangler



Features:

Strengthens factory JK axle housing
Formed design significantly reduces installation time compared to multi-piece designs
Compatible with stock, Synergy Bolt-On, and Synergy Weld-On Track Bar Relocation Brackets
CNC formed 3/16 inch Steel Construction
Seams welded
Compatible with both Rubicon and non-Rubicon Jeeps
Does not require additional bump-stop spacer height
Requires cutting/welding experience - should be installed by experienced welder/fabricator



Notes:

Compatible with bolt-on and weld-on rear track bar relocation brackets, 8076, 8076-RHD, 8056, 8056-RHD and 8072-01.
Axle truss and track bar brackets can be installed in any order.
Recommended to be used in conjunction with 8012-15 front axle truss.
Requires welding
Some trimming/fitment may be required due to slight variations from axle to axle
Length of this truss is 26-3/8 inches
