Fabtech 3" TRAIL LIFT KIT – FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS for 20+ Jeep Gladiator JT 3.0 DIESEL K4213DL
SKU
FBT-K4213DL
We Price Match
- Manufacturer: Fabtech
- Part: Lift Kits - Suspension 2-3 Inch
This Trail Lift Kit provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions.
Special Price $6,455.16 Regular Price $8,068.95
Bulk Item Surcharge: $105.95
Fabtech K4213DL
This Trail Lift Kit provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions.
The system is a complete short arm suspension that utilizes the factory lower control arm mounts for an easy installation. The Fabtech lower link arms are constructed of thick wall steel tubing that are guaranteed never to bend. They come with large polyurethane bushings on one end with internal threads on the other to accept the groundbreaking Fabtech 5 Ton Joint® for longevity and a quiet ride.
The conversion includes heavy duty 1/4″ thick steel bracketry that attaches to the side of the Jeep coil spring bucket and to the frame for stout mounting of the Dirt Logic Coilovers. The Dirt Logic 2.5 Coilovers are the only all stainless steel body shock on the market. This is the most corrosive resistant shock there is. The ride quality of these Coilovers are vastly superior to a coil spring and shock configuration. This is the single biggest improvement you can do to your Jeep Gladiator to enhance the ride quality both on and offroad.
To address the steering geometry with the increased ride height, a Draglink Flip kit along with a heavy duty Track Bar bracket is included. This relocates the Gladiator steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.
The rear Gladiator suspension receives a heavy duty Track Bar bracket to center the axle under the vehicle with the new ride height and help retain the factory roll center of the vehicle.
Front and rear bumps stop extensions protect the Jeep Gladiator suspension from over cycling.
This popular Jeep Gladiator lift kit is a top choice for daily drivers that enjoy tackling tough trails and overlanding with the comfort that they have a high quality complete suspension under their Gladiator.
Each Fabtech component has been designed with specific features and benefits that create this quality suspension system.
This Trail Lift Kit provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions.
The system is a complete short arm suspension that utilizes the factory lower control arm mounts for an easy installation. The Fabtech lower link arms are constructed of thick wall steel tubing that are guaranteed never to bend. They come with large polyurethane bushings on one end with internal threads on the other to accept the groundbreaking Fabtech 5 Ton Joint® for longevity and a quiet ride.
The conversion includes heavy duty 1/4″ thick steel bracketry that attaches to the side of the Jeep coil spring bucket and to the frame for stout mounting of the Dirt Logic Coilovers. The Dirt Logic 2.5 Coilovers are the only all stainless steel body shock on the market. This is the most corrosive resistant shock there is. The ride quality of these Coilovers are vastly superior to a coil spring and shock configuration. This is the single biggest improvement you can do to your Jeep Gladiator to enhance the ride quality both on and offroad.
To address the steering geometry with the increased ride height, a Draglink Flip kit along with a heavy duty Track Bar bracket is included. This relocates the Gladiator steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.
The rear Gladiator suspension receives a heavy duty Track Bar bracket to center the axle under the vehicle with the new ride height and help retain the factory roll center of the vehicle.
Front and rear bumps stop extensions protect the Jeep Gladiator suspension from over cycling.
This popular Jeep Gladiator lift kit is a top choice for daily drivers that enjoy tackling tough trails and overlanding with the comfort that they have a high quality complete suspension under their Gladiator.
Each Fabtech component has been designed with specific features and benefits that create this quality suspension system.
Fitment:
20+ Jeep Gladiator JT 3.0 Diesel
Features:
COILOVER CONVERSIONBolt on super stout bracketry allows the mounting of Dirt Logic 2.5 Coilovers for a superior highway ride while having the ability to tackle the roughest offroad terrain.
CONTROL LINK ARMS
Proper factory bushing cross bolt angles are parallel on Fabtech Short Arm link arms eliminating premature bushing wear resulting in poor handling.
This system replaces the four lower link arms due to their vulnerability to offroad obstacles and include the massive Fabtech 5 Ton Joints® with a lifetime warranty.
1.75″ OD. .250″ thick wall Link Arms guaranteed not to bend.
REAR DUAL RATE LONG TRAVEL COIL SPRINGS
As a true dual rate coil, the first stage of the coil allows the spring to respond to small bumps for a very complaint ride at lower speeds. As the spring travels further, the rate increases to absorb larger impacts and support additional cargo of the vehicle.
These springs are the best on the market for all around driving while providing increased suspension travel for offroad use.
DRAGLINK FLIP SYSTEM
A heavy duty draglink is relocated on the steering knuckle to retain the factory steering geometry with the stock pitman arm. It provides bind free operation at full articulation and eliminates bump steer throughout the travel. It does not increase load on the steering box like a dropped pitman arm can.
FRONT TRACK BAR BRACKET
To work in conjunction with the Draglink Flip System, the front Track Bar is relocated to the proper operating plane with a 1/4" thick steel bracket that bolts to the axle housing for a lifetime of trouble free use.
REAR TRACK BAR BRACKET
A bolt on 1/4" thick steel bracket is built to eliminate mount deflection when the track bar moves through its full cycle. It relocates the factory track bar to retain the important factory roll center.
BUMP STOP EXTENSIONS
Front and rear bump stop extensions keep the suspension from over cycling with the increased ride height preventing damage to steering and suspension parts. The extensions utilize the factory closed cell cushions for a progressive stop at the end of the suspension travel.
FRONT & REAR SWAY BAR LINKS
The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. These links are provided to eliminate the sway bar from going over center and creating link bind at full extension travel.
DIRT LOGIC SHOCKS
Constructed of a stainless steel body with a NitroSteel® piston rod for maximum corrosion resistance and durability. Dirt Logic shocks have a superior ride quality both on and offroad with excellent damping for offroad use.
FRONT DIRT LOGIC 2.5 RESI COILOVER
The Dirt Logic 2.5 Resi Coilover provides outstanding high speed damping with the ability to crawl at low speed with maximum articulation for big rocks.
2.5″ OD Stainless Steel Body
2.25″ OD Billet Aluminum Piston
7/8″ NitroSteel® Black Piston Rod
Cold wound dual rate coil springs
Adjustable Coilover Construction
5/8″ Spherical Ball Mounting Ends
2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose

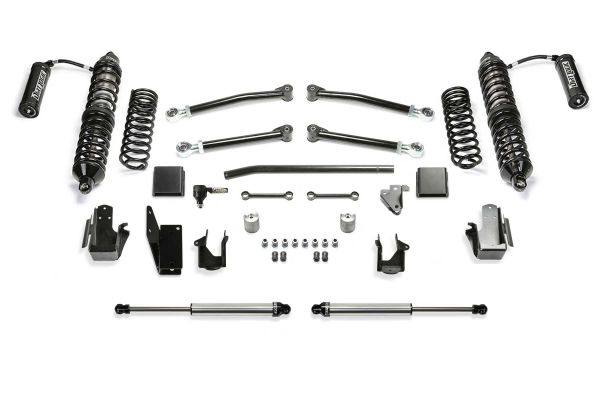

Parts Included:
Front 1.75" OD .250 wall Link ArmsRear 2.0" OD .313 wall Link Arms
Draglink Flip Kit
Front & Rear Track Bar Bracket
Rear Dual Rate Coil Springs
Front & Rear Sway Bar Links
Front Dirt Logic 2.5 Coilover Conversion
Front & Rear Bump Stop Extensions
Notes:
STOCK FENDERS
Tire Size – 35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
Tire Size – 325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
HIGH CLEARANCE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/cutting
