AEV Geometry Correction Front Control Arm Brackets For 2007-18 Jeep Wrangler JK 2 Door & Unlimited 4 Door Models NTH20410AD
AEV's Front Control Arm Drop Brackets for 2.5"-4.5" lift kits pack a lot of suspension performance improvements into a small and affordable package. These drop brackets will improve front impact ride quality (expansion joints, ledges), increase anti-dive for improved braking performance, decrease the operating angle range of the front driveshaft, and eliminate the need for adjustable control arms or cam bolts for caster correction. AEV Front Control Arm Drop Brackets are included in all AEV 3.5"/4.5" DualSport suspensions, but can also be added to AEV's 2.5" DualSport suspension as well as other manufacturer's suspensions. If you are installing this kit to a previously installed suspension system that utilized cam bolts, you'll want to order the cam bolt eliminator kit (click the checkbox above) P/N AEV99064AA (M14 bolt, nut, and two thick washers). You can tack weld the washers to add more support. Adjustable control arms can certainly allow the proper caster angle to be dialed in, however they are incapable of all the other parameter changes, and in fact make the instant center, ride quality and driveshaft angles all worse than stock.
Adjustable control arms can do some things that the drop brackets can not:
- Move the axle position forward or aft which may be required with aftermarket HD axles.
- Change the pinion angles for aftermarket Cardan or Double Cardan driveshafts.
- Correct minor deviations in suspension geometry after an accident with mild frame damage.
Improve front impact ride quality (expansion joints, ledges) - By reducing the operating angle of the front control arms, the suspension is allowed to work in a more natural state. This means that when hitting a bump, the force applied to the control arms is directed up into the springs instead of back directly into the frame. In effect an AEV 3.5" lifted JK "thinks" its lifted only 1.25"
Change the instant center to increase Anti-Dive for improved braking performance - By increasing the anti-dive geometry of the suspension, you'll notice the front of the vehicle will barely drop under hard braking when the control arm brackets are used. By increasing force on the front wheels, traction is increased for better straight line braking and by reducing the shifting weight and inertia under braking in curves, handling is greatly improved
Decrease the operating angle range of the front driveshaft - This one is often overlooked. Aftermarket double cardan joints do not have the torque rating (1850lb/ft for t a 1310 double cardan, 2150 lb/ft for the OE CV Joint) and they can't run as smoothly so its advantageous for most JK use to keep the stock CV units. The Front Control Arm Brackets rotate the pinion up as the axle drops to eliminate torn boots on the CV for long life with a lifted application.
Eliminate the need for adjustable control arms or cam bolts for caster correction - AEV has been touting the benefits of using the stock control arms for a long time because of the pre-loaded rubber OE Bushings that the factory uses, and because that quality has yet to be rivaled in any aftermarket bushing. These new brackets allow for the proper caster ranges to be achieved.
Fitment:Fits 2007-18 Jeep Wrangler (JK)
Fits 2007-18 Jeep Wrangler Unlimited (JK)
Features:Lowers arm angle for ride quality.
Lowers the instant center for better braking (antidive).
Decreases operating angle of the driveshaft by reducing the range of travel.
Corrects caster angles

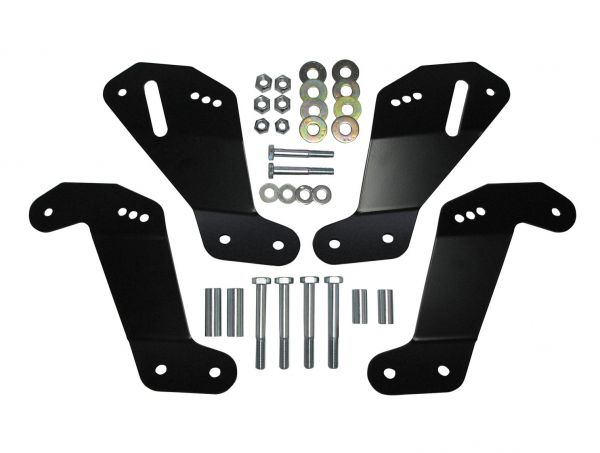

Parts Included:(4) Control Arm Drop Brackets
Important Note: If your measurement is less than 5-1/2" AEV does not recommend these brackets
If your measurement is greater than 9" adjustable control arms may be required to achieve proper caster angle.
If your measurement is 5-1/2" to 6-1/2" you'll install the upper control arm in the upper hole location (2.5") as illustrated on page 4 of the install sheet.
If your measurement is 7-8" you'll install the upper control arm in the middle hole location (3.5") as illustrated on page 4 of the install sheet.
If your measurement is from 8 to 9" you'll install the upper control arm in the lower hole location (4.5") as illustrated on page 4 of the install sheet.
